Overview

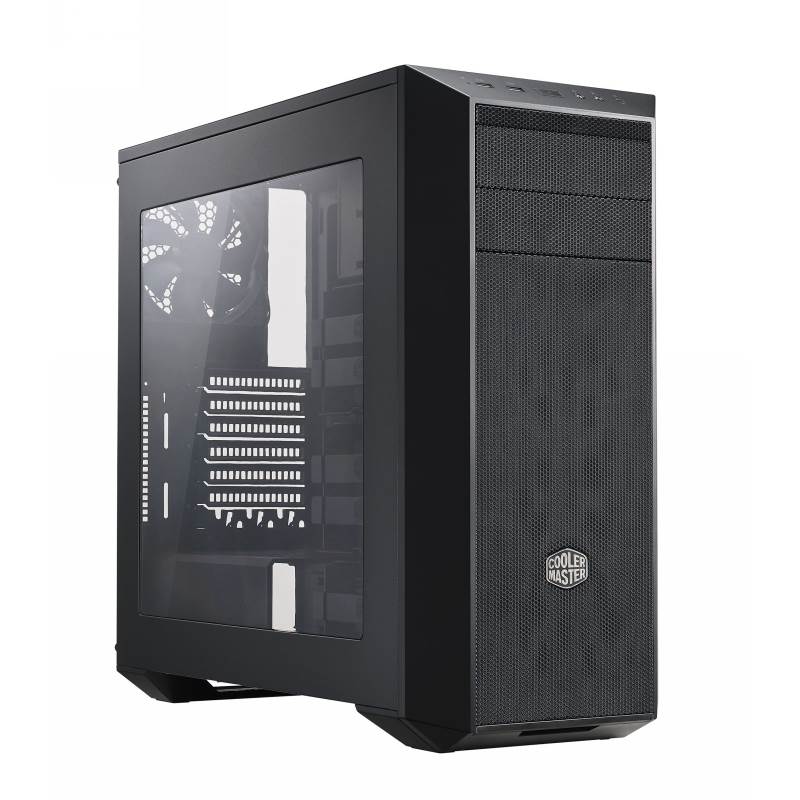

Unlock your case¡¯s inner potential with MasterBox 5¡¯s Configurator system. A straightforward design and smartly placed cut-outs make light work of installation and expansion. Keep your system contained with plenty of routing holes and covers for your PSU* and drive bays. Easily remove, slide and rearrange the internal layout to support larger, high-end components, air and DIY water cooling. You decide the inside.
Features
- Flexible mounting: easily mount and rearrange SSDs, HDDs across the motherboard tray, along the bottom shelf or the back (for SSD)
- Expansion support: motherboard tray cutouts creatively rearrange space to fit high-end motherboards, extra-long dual-slot graphics cards and reservoir mounting for DIY cooling
- Clean cabling: all system setups have hidden space for cable management
- Compact cooling: supports four 120mm fans or a 280mm front radiator for DIY liquid cooling
Specifications
| Product Number |
|
CM-CA-MCY-B5S1-KWYN-02 |
| Available Color |
|
Black |
| Materials |
|
Steel body, Plastic mesh bezel |
| Dimensions (LxWxH) |
All Internal Structures |
500 x 220 x 475mm
|
| Motherboard Support |
|
ATX, Micro-ATX, Mini-ITX |
| Expansion Slots |
|
7 |
| Drive Bays |
5.25"
Combo 3.5" / 2.5"
SSD |
2
2
1 |
| I/O Port |
|
USB 3.0 x 2, Audio in / out |
| Pre-installed Fan(s) |
|
120mm x 1 |
| Fan Support |
Front
Top
Rear |
120mm / 140mm x2
120mm / 140mm x1
120mm x1 |
| Liquid Cooling Support |
Front
Rear |
240mm / 280mm radiator, up to 50mm thickness without fan
120mm x1 |
| Clearances |
CPU
PSU
GPU |
167mm / 6.5"
180mm / 7.1"
285mm / 11.7" (w/ 3.5" HDD cage)
410mm / 16.1" (w/o 3.5" HDD cage) |
| Cable Routing |
Behind Motherboard Tray |
25mm - 35mm |
| Dust Filters |
|
Front, bottom |
| Power Supply Support |
|
Bottom mount, ATX |
| Product Weight |
|
7.64kg
|
| Warranty |
|
2 Years |
|
