Network Ports

• 8 auto-sensing UTP ports

Forwarding Mode

• Store-and-forward
• 192 KB on-chip packet buffering

Performance

• Bandwidth:
  16 Gbps (non-blocking)
• Forward rate
  - 10 Mbps port: 14,800 packets/sec
  - 100 Mbps port: 148,000 packets/sec
  - 1000 Mbps port: 1,480,000 packets/sec
• Latency (using 1500-byte packets):
  - 10 Mbps: 30µs (max)
  - 100 Mbps: 6µs (max)
  - 1000 Mbps: 4µs (max)
• MAC address database: 4,000
• Mean time between failures (MTBF): >1 million hours (~114 years)

Status LEDs

• System power
• Link, speed, and activity indicators per port built into each RJ-45 port

AC Power

• Power adapter: 12W, 12V DC, 1A
• Maximum power consumption:
  - 4.92 W (if cable length > 10m)
  - 4.08 W (if cable length < 10m)

Physical Specifications

• Dimensions (w x d x h):
  158 x 105 x 27 mm (6.2 x 4.1 x 1.1 in)
• Weight: 0.522 kg (1.15 lb)

Environmental Specifications

• Operating temperature: 0º to 50º C (32º to 122º F)
• Operating humidity: 10% to 90% non-condensing
• Storage temperature: -20º to 70¡ã C (-4º to 158º F)
• Storage humidity: 10% to 95% relative humidity

Standards Compliance

• IEEE 802.3i 10BASE-T Ethernet
• IEEE 802.3u 100BASE-TX Fast Ethernet
• IEEE 802.3ab 1000BASE-T Gigabit Ethernet
• Honors IEEE 802.1p and DSCP priority tags
• Jumbo frame: up to 9,720 bytes

Safety Agency Approvals

• C-Tick, CE Mark

Electromagnetic Compliance

• FCC Class B, VCCI class B, CE Class B

Warranty

• Switch: NETGEAR Lifetime Warranty††
• Power adapter: NETGEAR 2-year warranty

ProSupport Service Packs Available

OnCall 24x7, Category 1

• PMB0331-100 (US)
• PMB0331 (non-US)

XPressHW, Category 1

• PRR0331

Package Contents

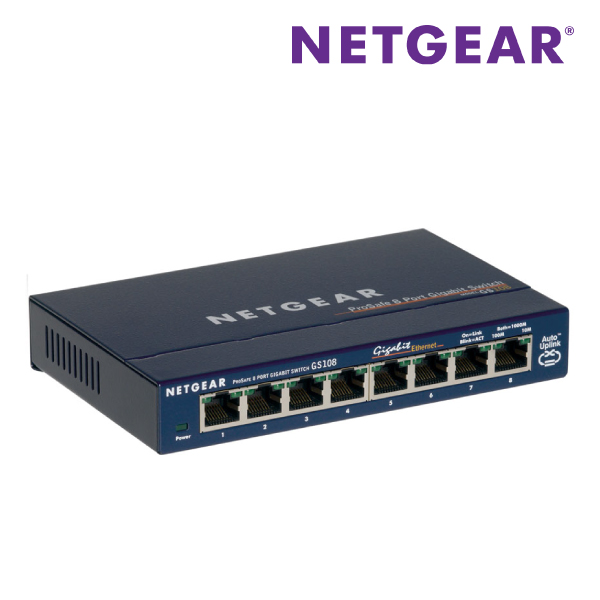

• ProSafe 5-port or 8-port Gigabit Desktop Switch 10/100/1000 Mbps (GS105v3 or GS108v3)
• Wall-mount kit
• AC adapter
• Installation guide
• Warranty/support information card
