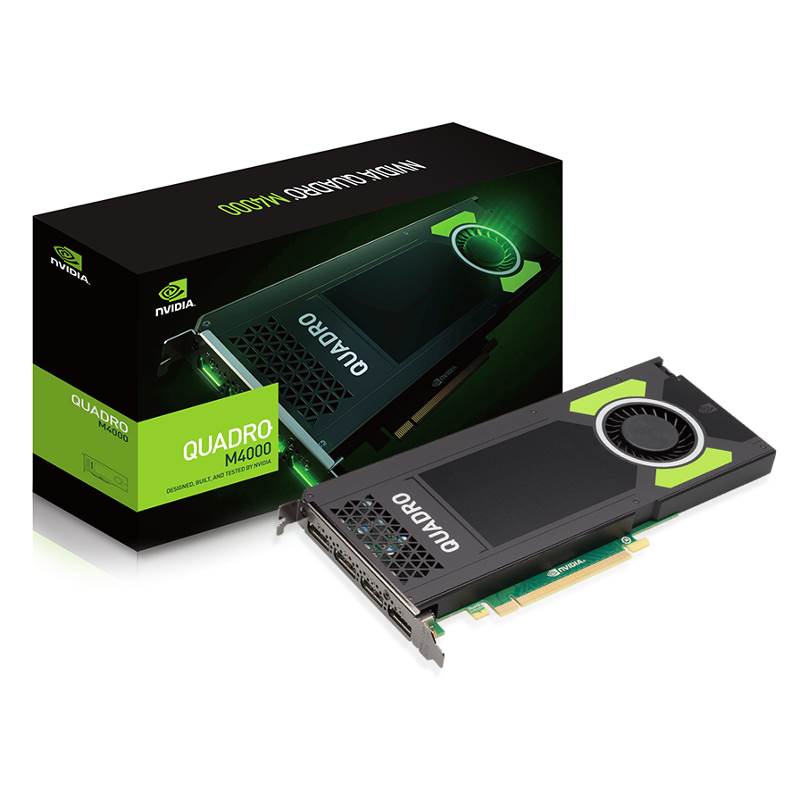

The NVIDIA Quadro M4000 is accelerated by NVIDIA Maxwell™ GPU architecture, letting you easily tackle your most demanding visualization workloads with extreme performance and the flexibility of a single-slot form factor. 8 GB of GDDR5 GPU memory with fast bandwidth allows you to create and render large, complex models and compute massive datasets. Plus, there¡¯s a new display engine that drives up to four 4K resolution displays natively with DisplayPort 1.2 support for ultrahigh resolutions like 4096 x 2160 @ 60 Hz with 30-bit color. Pair up two or more outputs to drive displays greater than 4K, and take advantage of NVIDIA Quadro Sync support to frame-lock up to 16 4K displays in a single system¹. Quadro cards are certified with a broad range of sophisticated professional applications, tested by leading workstation manufacturers, and backed by a global team of support specialists. This gives you the peace of mind to focus on doing your best work. Whether you¡¯re developing revolutionary products or telling spectacularly vivid visual stories, Quadro gives you the performance to do it brilliantly.
• Four DisplayPort 1.2 Connectors
• DisplayPort with Audio
• VGA Support²
• 3D Stereo Support²
• NVIDIA GPUDirect™ Support
• Quadro Sync Compatibility
• Stereo Connector
• NVIDIA nView® Desktop
• Management Software
• Compatibility
• HDCP Support
• NVIDIA Mosaic³
¹ NVIDIA Quadro Sync board sold separately. Learn more at www.nvidia.com/quadro
² Via adapter/connector/bracket
³ Windows 7, 8, 8.1, 10 and Linux

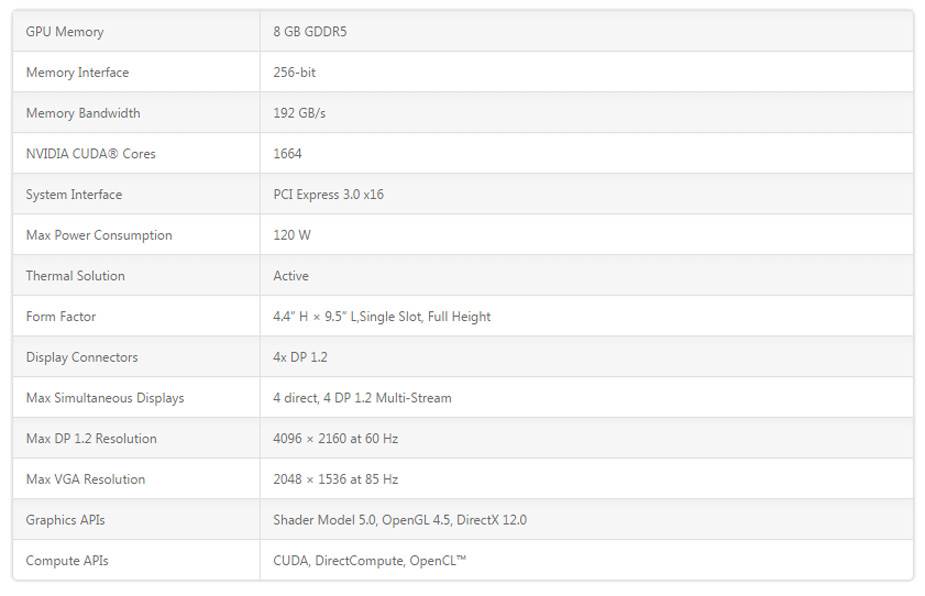

| Brand |
Leadtek |
| CUDA Parallel Processing cores |
1664 |
| Display Connectors |
4x DisplayPort 1.2 |
| Frame Buffer Memory |
Frame Buffer Memory |
| Graphics Bus |
|
| Max Power Consumption |
120W |
| Memory Bandwidth |
192 GB/s |
| Memory Interface |
256-bit |
| Thermal Solution |
Active Reference |
| Warranty |
3 Years Warranty | |
